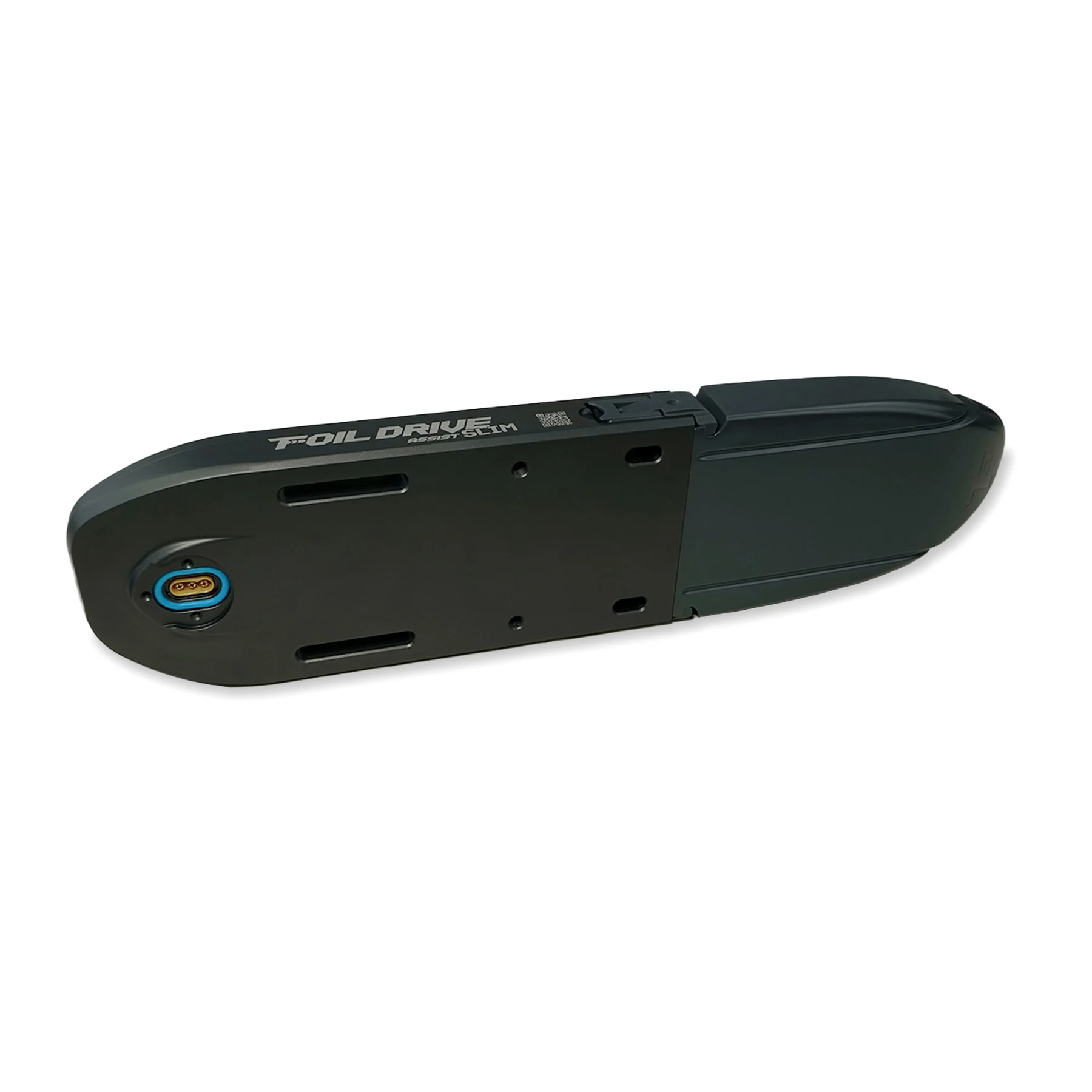

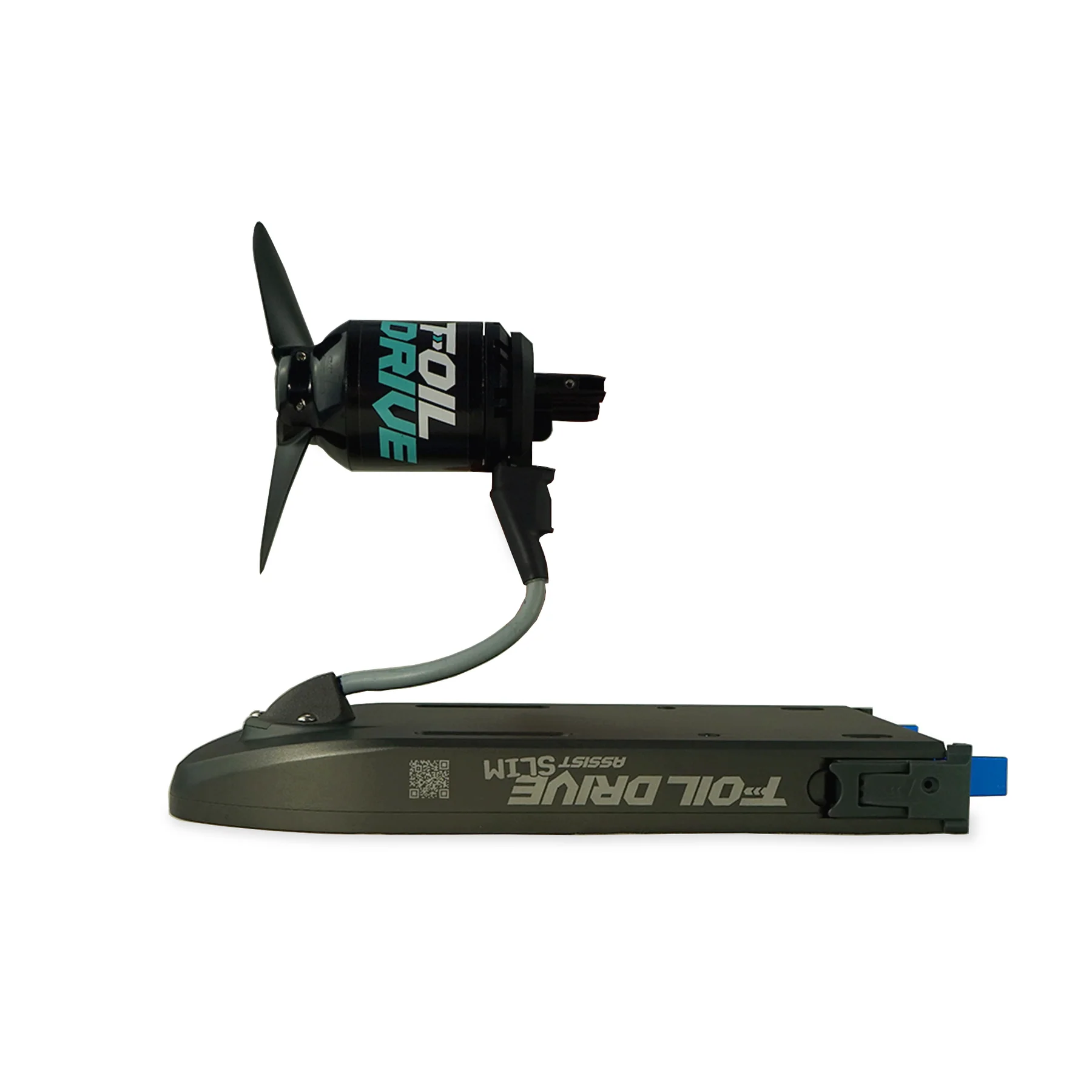

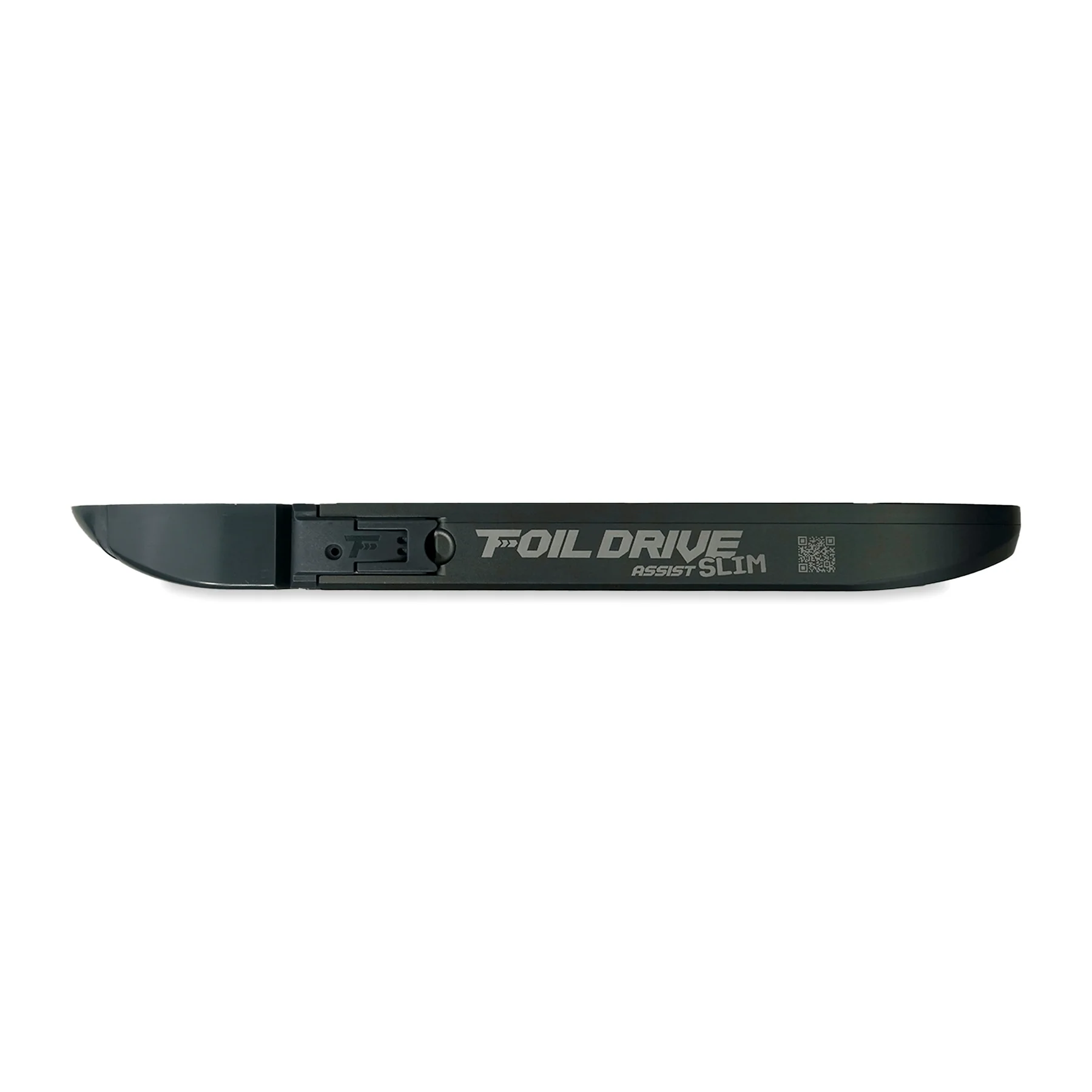

The FOIL DRIVE Assist Slim is the lightest, performance-focused model designed to preserve the weightless and natural feel of foiling while still providing plenty of thrust and runtime when used efficiently.
Built for riders who prioritize responsiveness, agility, pumping, and minimal drag, the Slim excels in short, powerful bursts to get on foil before transitioning to pure glide. It offers the same peak power as the Assist MAX in a thinner, more compact system. Ideal for experienced riders who value balance, light weight, and reactive carving in surf, wake, windswell, and flatwater.

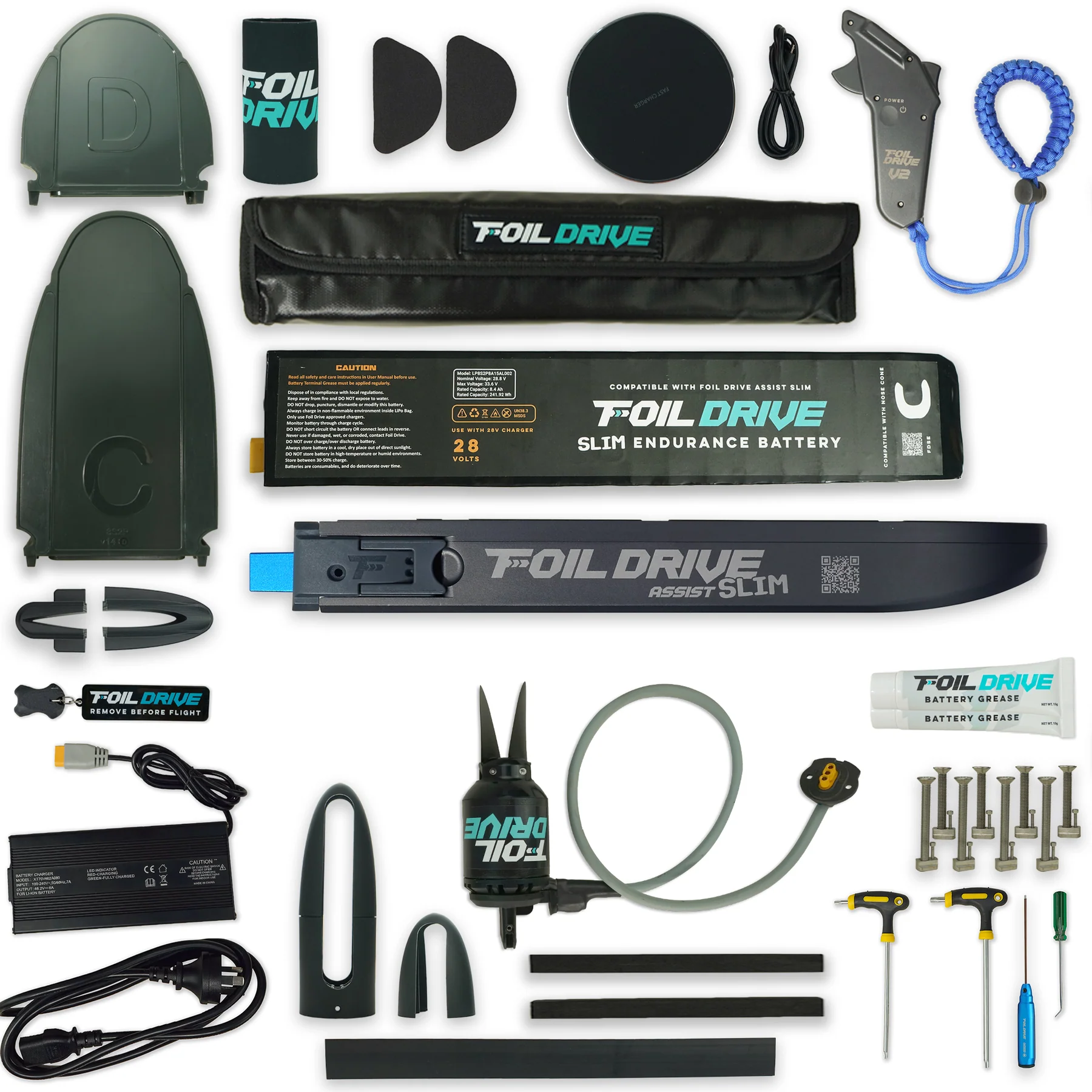

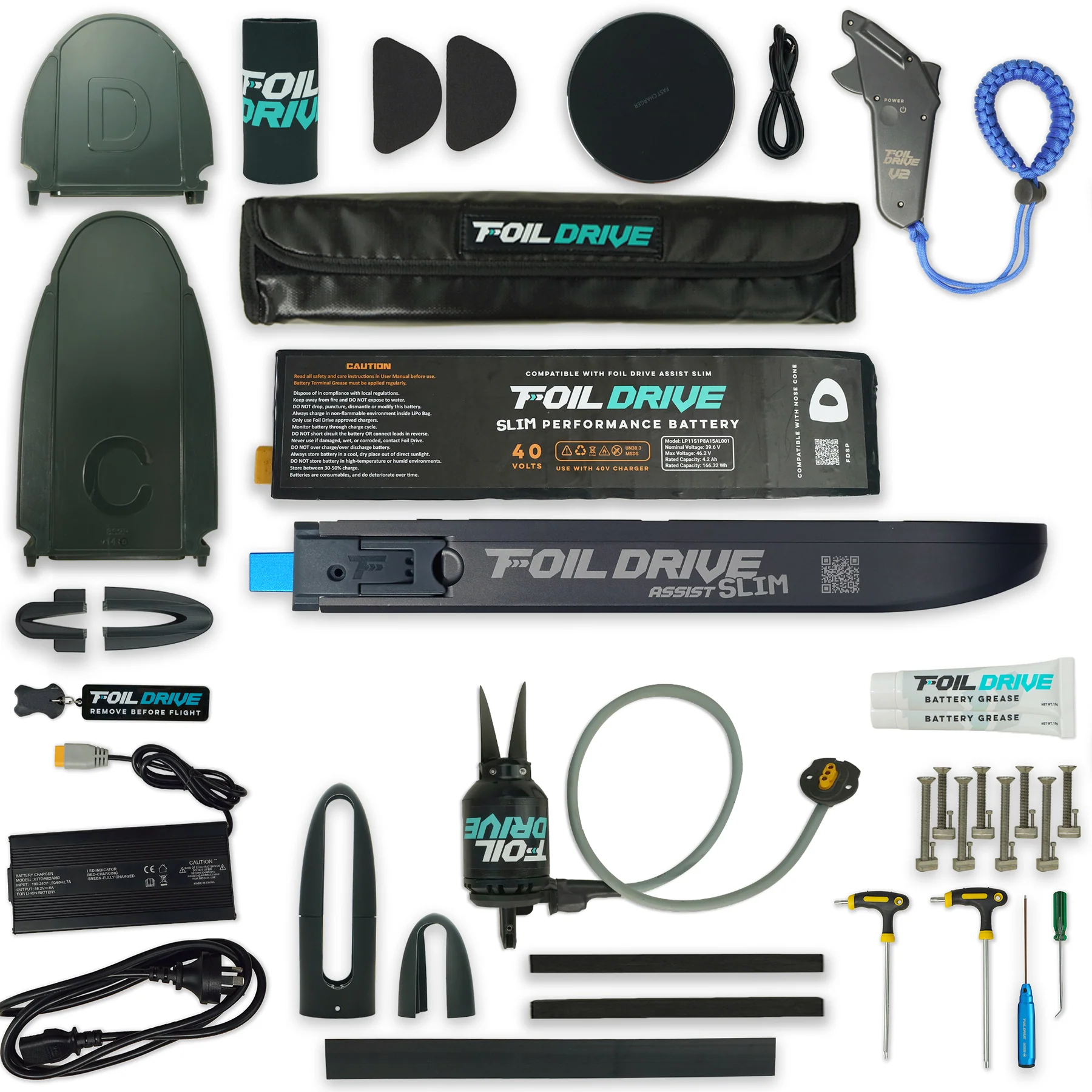

What’s in the box
- Foil Drive Assist Slim
- Motor Plug Protector with Keychain
- 40v Standard Foil Drive Charger 4amp
- Nose Cone C & D
- Universal Motor Pod – Rear, Short & Long Nose
- Universal Motor Pod Keys
- V3 Wireless Throttle Controller
- Controller Wireless Charge Pad and Micro USB Cable
- Controller Wrist Strap
- 1x Mast Cable Guide 23cm each
- 2x Mast Track Foam Inserts
- 2x Nose Cone Rocker Pad
- 2x Battery Grease
- Foil Drive Mounting Bolt Bag
– 4x M8 Locking Tee Nuts
– 4x M6 Locking Tee Nuts
– 4x M3 x 20mm Bolts for Locking Tee Nuts - 4x M8 Assist Slim Mast Plate Bolts 60mm
- 4x M6 Assist Slim Mast Plate Bolts 60mm
- Foil Drive 2.5mm Driver
- Pick Tool
- Torx T40 Tee Handle Driver
- Torx T30 Tee Handle Driver
- Foil Drive Cleaning Cloth
- Foil Drive Gen2 Carry Case
- Foil Drive Motor and Pod Bolts Bag
– 4x Motor Pod Bolts (M3 x 12mm)
– 3x Puck Bolts (M3 x 12mm)
– 3x Motor Plug Bolts (M4 x 10mm) - Spare Parts Bag
– 2x O-Ring Seals – Foil Drive Assist MAX
– 2x Latch Assembly – Foil Drive Assist MAX
– 3x Motor Plug Bolts (M4 x 10mm)
– 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
– 4x Latch Locking Bolts (M3 x 16mm)
– 2x Propeller Bolts (M3 x 30mm)
– 2x Latch Pivot Bolts (M3 x 45mm)
Add your choice of:
- Slim Battery
- Retro-Fit High Power Motor, Retro-Fit Standard Motor (20cm motor cable included) or Integrated Mast High Power Motor (motor cable not included)
Compatibility
Slim Performance Battery
Slim Endurance Battery (Endurance requires 28v Charger – not included)
Slim Travel Battery
28 OR 40 Volt Charger (Depending on Battery)
Specification
- System Nominal Voltage: 40V
- Battery Capacity Range: 166-241Wh
- Max Thrust: 26.5kg / 58.4lbs
- Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
- Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
- Dimensions with Battery: L510x W125 x H35mm
- Peak Horsepower: 1854W/2.5hp
- Sustained Horsepower: 1455W/1.9hp
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance
