EASY – SOPHISTICATED – EFFICIENT – SLICK – MODULAR
The AXIS K-Series Foil is a freeride foil system like no other and ideal for freeride kite riding. Leveraging the S-Series construction, the K-Series is incredibly strong, stiff, and responsive under your feet. Each component is rigid, and connected strongly, creating a foil system that will transfer your input from your feet much quicker and with stability. When comparing the AXIS 19mm thick masts to other masts on the market (15mm thick), they found that this mast is 224% stiffer! A huge improvement in feel and performance.

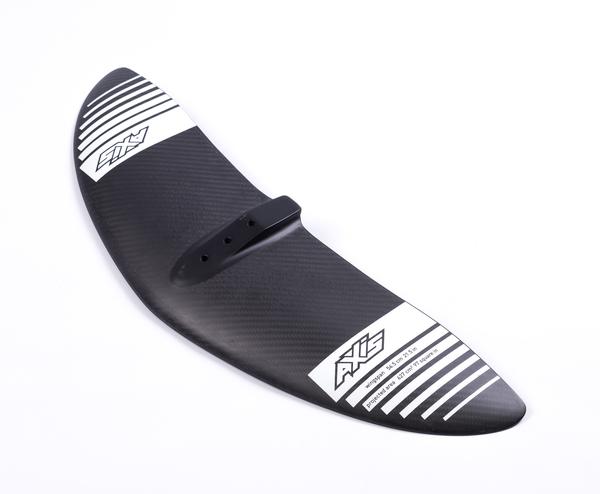

The 545 Front Wing is designed for all round performance, smooth progression and quick side to side transitions. The 545 is a Carbon wing with beautiful flow and lines, lightweight and strong. If you are looking for a stable wing that will help you progress quickly, make your transitions fast and loose, while you don’t compromise on speed, look no further.¬† If there is one front wing for all kite foiling conditions, this would be the AXIS K-Series 545 Carbon front wing.

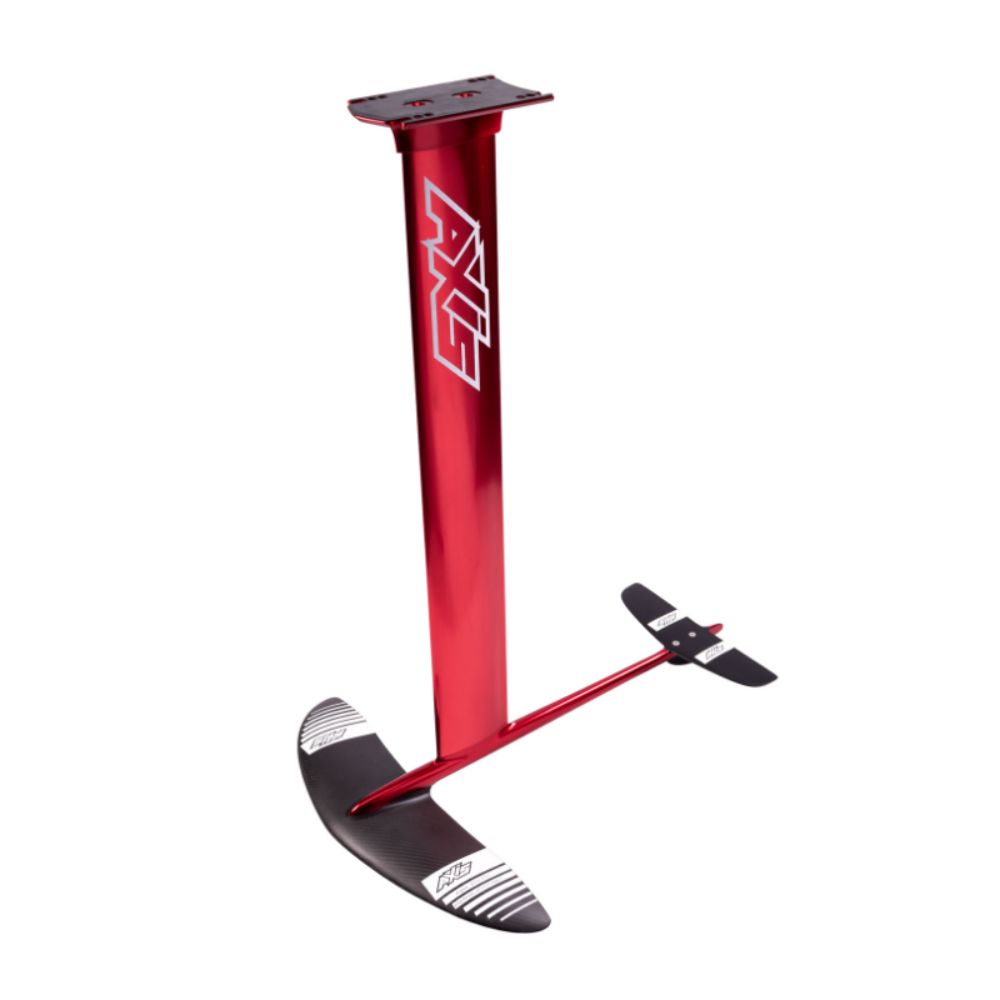

2019 K-Series 545 Freeride Foil Includes
- Carbon 545 front wing

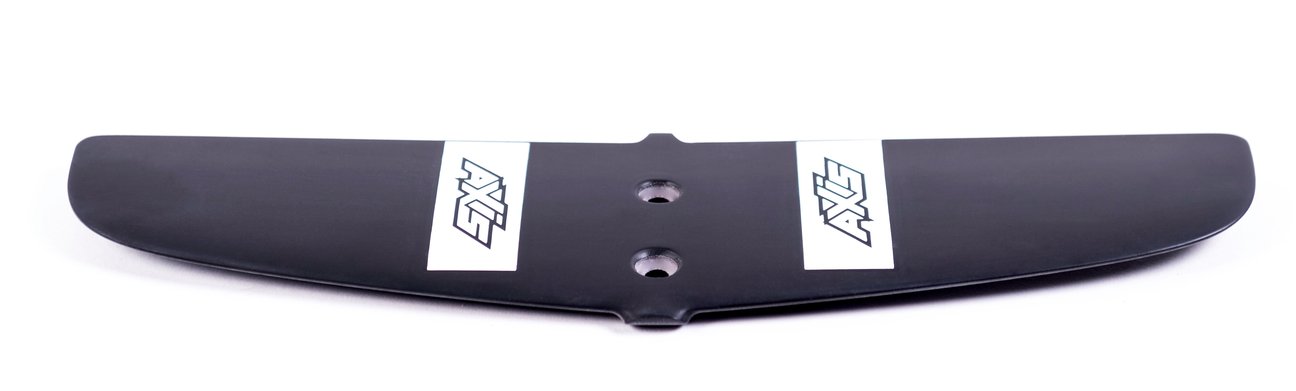

- Carbon rear wing: 320mm G-10

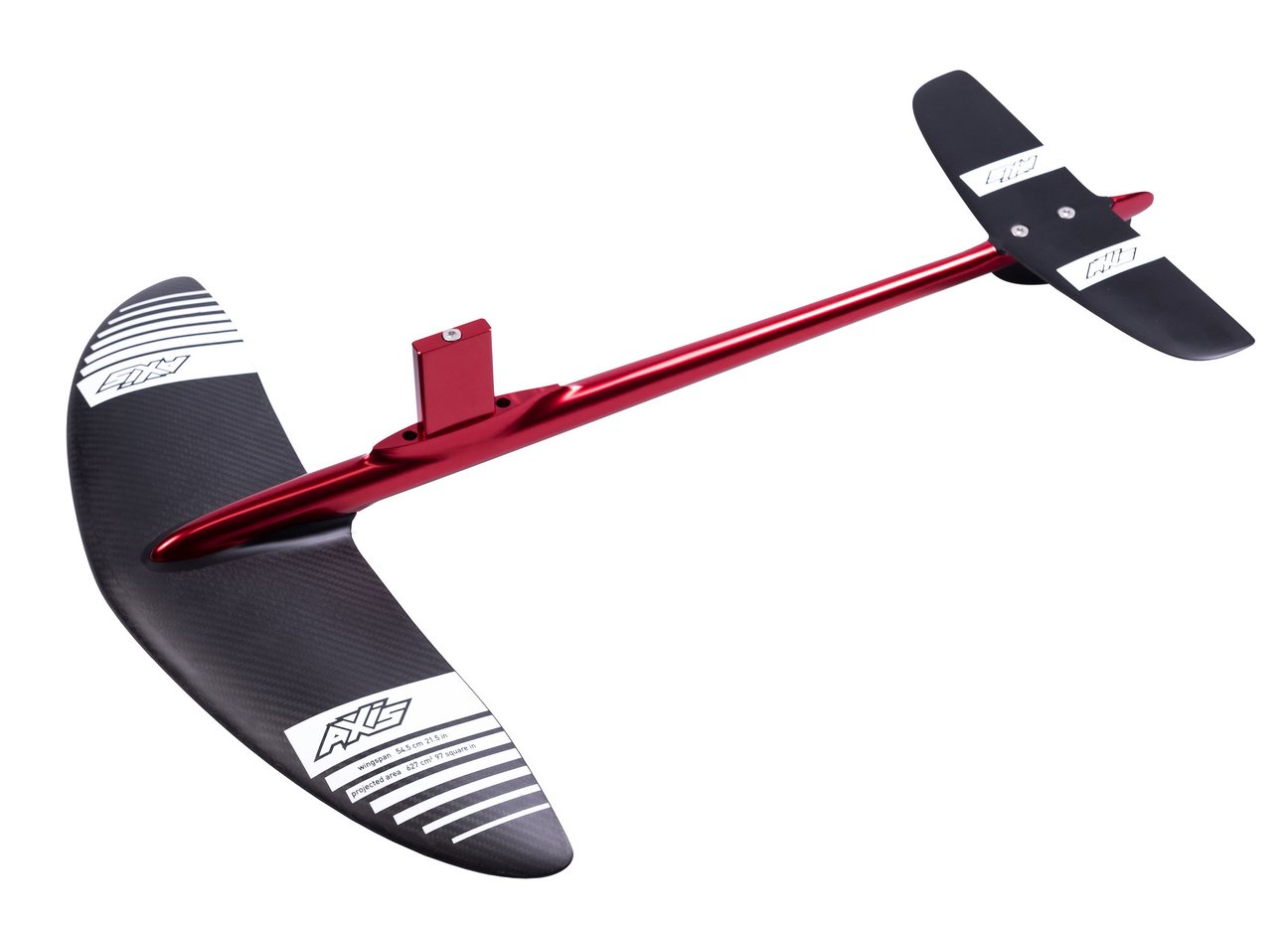

- K-Series CNC machined fuselage and base plate
- Aluminium 90cm mast

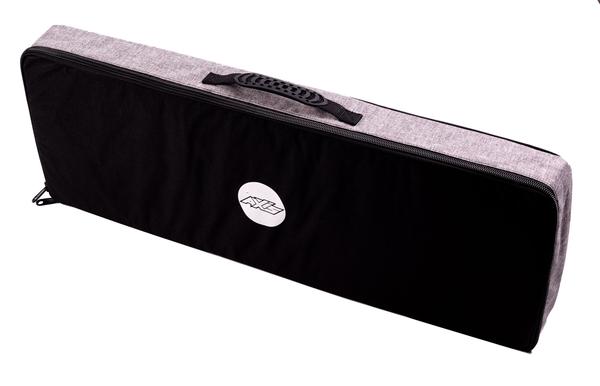

- Hardware, Tef-Gel and travel case
Tech Specs
| Wingspan | Chord | Projected Area |
| 545 mm | 145 mm | 627 cm² |
| 600 mm | 175 mm | 808 cm² |
Easy to ride and easy to maintain
For their wings AXIS utilizes a non-laminar flow foil section, which means the surface of the wing is less critical than a typical laminar flow foil, so scratches or abrasions won’t cause a noticeable change in the performance of the foil.
The red anodized aluminium mast sections connect perfectly with precision CNC machined fuselage and base plate. Stainless steel torx screws connect the components with included premium Tef Gel Anti-seize lubricant for maximum corrosion resistance. It all packs into a handy travel case.
The AXIS Fuselage, CNC cut from cold forged Aluminium, and CNC cut Base Plate have been precisely shaped so the mast sections fit in a 20mm deep socket. This provides the strongest junction and eliminates unwanted movement. While the standard mast included in the AXIS Aluminium Freeride Foil setup is the 90cm (35.4 inches), additional mast lengths are available to follow your progression and local conditions.
